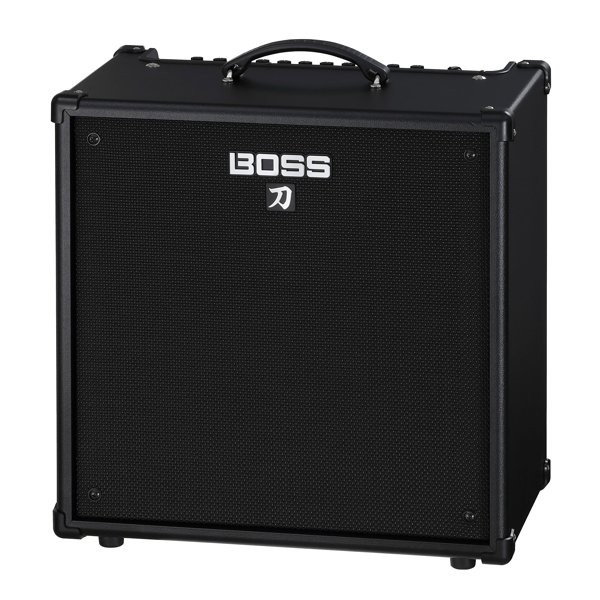

BOSS KATANA KTN-110B

- Rated Power Output
60 W

- Nominal Input Level
INPUT: -10 dBu (1 M ohm)
POWER AMP IN: -10 dBu (20 k ohms)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)

- Speaker
WOOFER: 25 cm (10 inches) x 1
TWEETER: x 1

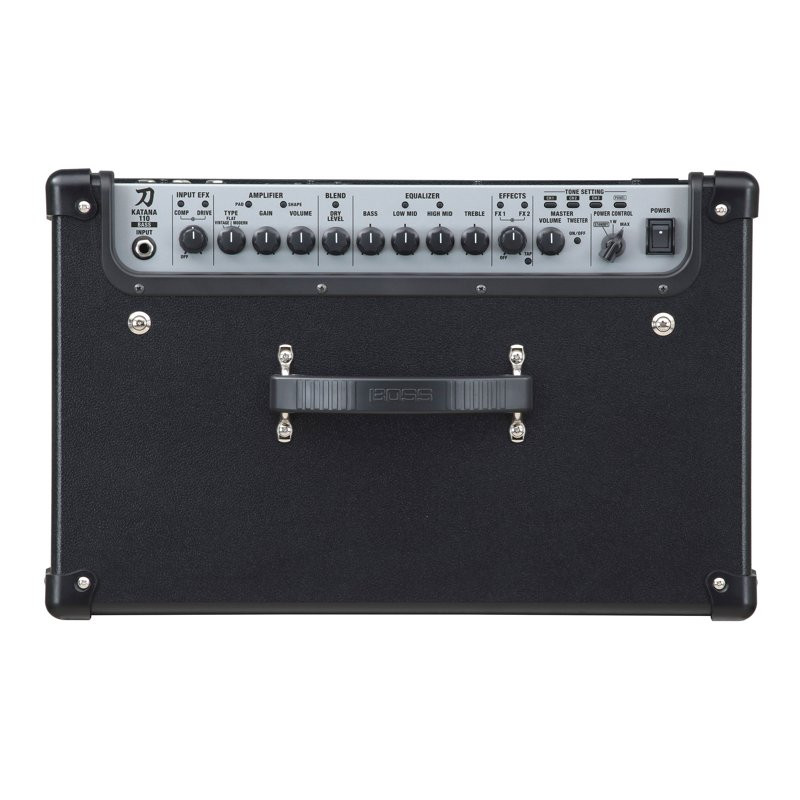

- Controls
POWER switch
MASTER VOLUME knob
POWER CONTROL switch (STANDBY, 1 W, MAX)
TWEETER button

[INPUT EFX]
COMP button
DRIVE button
COMP knob
DRIVE knob

[AMPLIFIER]
PAD button
SHAPE button
TYPE knob (VINTAGE, FLAT, MODERN)
GAIN knob
VOLUME knob

[BLEND]
BLEND button
DRY LEVEL knob

[EQUALIZER]
LOW MID button
HIGH MID button
BASS knob
LOW MID knob
HIGH MID knob
TREBLE knob

[EFFECTS]
FX1 button
FX2 button
TAP button
FX1 knob
FX2 knob

[TONE SETTING]
CH1 button
CH2 button
CH3 button
PANEL button

[BALANCED OUT]
GND LIFT switch (OFF, ON)
SELECT switch (POST, PRE, DIRECT)

- Indicators
COMP
DRIVE
PAD
SHAPE
BLEND
LOW MID
HIGH MID
FX1
FX2
TAP
CH1
CH2
CH3
PANEL
TWEETER

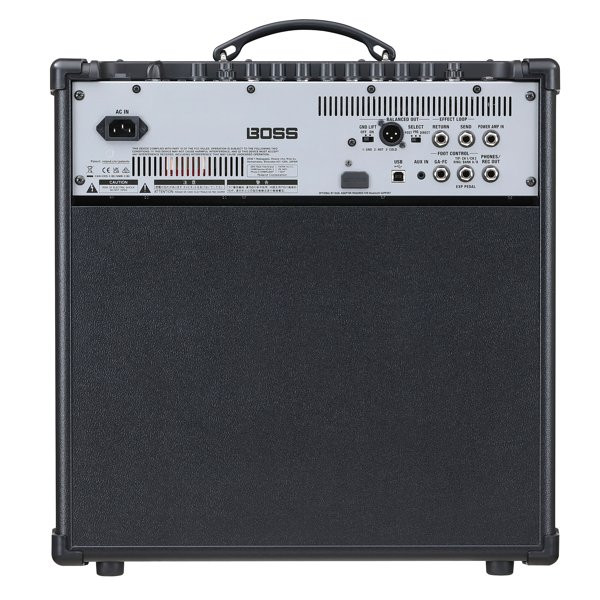

- Connectors
INPUT jack: 1/4-inch phone type
POWER AMP IN jack: 1/4-inch phone type
BALANCED OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
AC IN jack

- Power Consumption
77 W

- Dimensions (Include handle and rubber feet)
470 (W) x 300 (D) x 500 (H) mm
18-9/16 (W) x 11-13/16 (D) x 19-11/16 (H) inches

- Weight
16.8 kg
37 lbs 0.6 oz

- Accessories
Owner's Manual
Power cord
GA-FC sticker

- Options (sold separately)
Footswitch: BOSS FS-5L, BOSS FS-6, BOSS FS-7
Expression pedal: Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H
GA FOOT CONTROLLER (GA-FC)
BluetoothⓇ Audio MIDI Dual Adaptor (MODEL BT-DUAL)

* 0 dBu=0.775 Vrms
