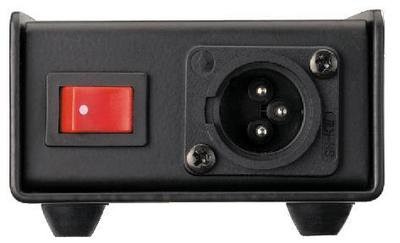

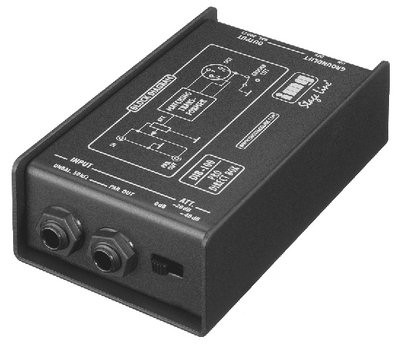

IMG STAGE LINE DIB-100 PASSIVE DI

Meer afbeeldingen

IMG STAGE LINE DIB-100 PASSIVE DI
€ 39,99

Beschikbaarheid: Op voorraad

DIRECT IN BOX PASSIEF
Beschrijving

Details

DI Boxes

For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated.

For adapting line levels, please use units of the LTR series!

DI box

  • 3-fold attenuation switch (0/-20/-40dB)
  • Ground lift switch
  • Instrument feed-through output
  • Wideband balancing transformer
  • Robust metal housing

Technical Facts DI boxes
 General Information

 Frequency range   15-30,000Hz, ±0dB
 Inputs   50kΩ
 Outputs   600Ω, XLR   50kΩ, jack
 Transmission ratio   10:1
 Admiss. ambient temp.   0-40 °C
 Dimensions   74x45x130mm
 Weight   650g
 Inputs   6.3mm jack, unbal
 Outputs   6.3mm jack, unbal., par. out XLR, bal.
Extra informatie

Extra informatie

Soort artikel DIRECT IN BOX PASSIEF
Artikelnummer 09001611
Specificaties N/B
Artikelgroep OGA
