MONACOR IRS-200

MONACOR IRS-200 - INFRAROOD LICHTSLUIS

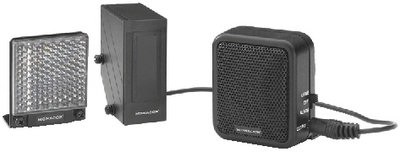

Infrared reflection light barrier,

with speaker, control output and LED indication. Ideally suited for the application as a door chime and for the surveillance of entrance areas.

• Sound of chime or siren via speaker
• Duration of alarm and volume can be adjusted
• Operating range: up to 7m
• Open collector control output, NPN, contact rating: 9-12V DC current /100mA max.
• Power supply: 9V DC current /100mA max. via supplied plug-in PSU 230V˜/50Hz/5VA
• Ready for operation without cable installation, ready for connection
