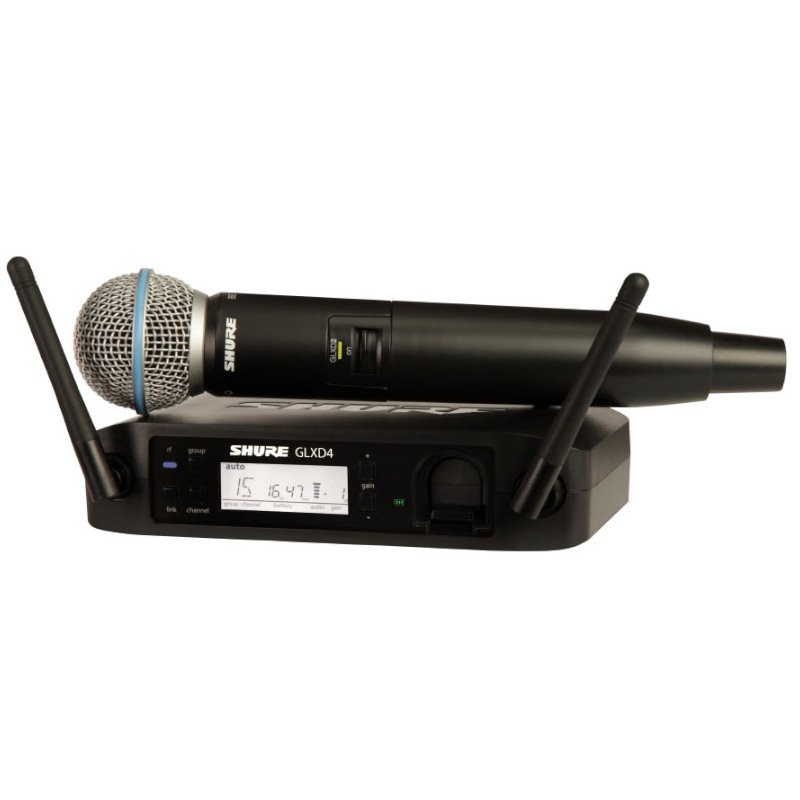

SHURE GLXD24E/B58

• Compatibele systemen per band (tot): 8
• Selecteerbare frequenties: Up to 17 channels
• Auto Setup Eigenschappen: Linkfreq: Automatic Frequency Management
• Audio Reference Companding: Nee
• Meegeleverde Antennes: Fixed
• Antennes opties: Nee
• Ontvanger met netwerk mogelijkheid: No
• Computer besturing: Nee
• Rack Hardware: URT2 (not included)
• Koffer: Included (except GLXD6 Sets)
• Zender Display: No
• Ontvanger Display: High-resolution LCD screen
• Batterij, levensduur: Lithium-Ion battery, up to 16 h
• Omgeving: Demanding acoustic environments

Verdere technische specificaties

• Tuning Bandwidth: 2400–2483.5 MHz
• Working Range:
  • Indoors: Up to 100 feet (30 m) typical, with a maximum of 200 feet (60 M) under ideal conditions
  • Outdoors: Up to 65 feet (20 m) typical, with a maximum of 165 feet (50 M) under ideal conditions
• Transmit Mode: Frequency Hopping
• Audio Frequency Response: 20 Hz – 20 kHz, Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.2%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F), Note: Battery characteristics may limit this range.
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance  1/4-inch output.
• Battery Life: Up to 16 hours


GLXD4

• Dimensions: 40 x 183 x 117 mm, H x W x D
• Weight: 286 g, without batteries
• Housing: Molded Plastic
• Power Requirements: 14 to 18 V DC (Tip positive with respect to ring), 550 mA
• Spurious Rejection: >35 dB, typical
• Gain Adjustment Range: -20 to 40 dB in 1 dB steps
• Phantom Power Protection: Yes
• Configuration
  • XLR Output: Impedance balanced
  • 6.35 mm (1/4") output: Impedance balanced
• Impedance
  • XLR Output 100 O
  • 6.35 mm (1/4") output: 100 O, (50 O, Unbalanced)
• Maximum Audio Output Level
  • XLR connector (into 600 O load): +1 dBV
  • 6.35 mm (1/4") connector (into 3 kO load): +8.5 dBV
• Receiver Antenna Input
  • Impedance: 50 O
  • Antenna Type: ½ Wave Sleeve Dipole, non-removable
  • Maximum Input Level: -20 dBm

GLXD2

• Dimensions
• Weight: 267 g, without batteries
• Housing: Molded Plastic
• Power Requirements: 3.7 V Rechargeable Li-Ion
• RF Output Power: 10 mW E.I.R.P. max
• Maximum Input Level: 146 dB SPL
